GLOBE #150 A #1500

GLOBE VALVES

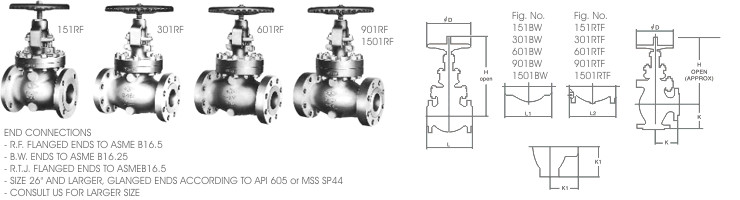

CLASS 150, 300, 600, 900, 1500 / (OUTSIDE SCREW and YOKE, RISING STEM, PLUG DISC, RENEWABLE SEAT RING )

CLASS 150
SIZE		mm	40	50	65	80	100	150	200	250	300	350	400	450	500
SIZE		inch	1 1/2	2	2 1/2	3	4	6	8	10	12	14	16	18	20
L(RF)		mm	165	203	216	241	292	406	495	622	699	787	914	978	978
L1(BW)		inch	6 1/2	8	8 1/2	9 1/2	11 1/2	16	19 1/2	24 1/2	27 1/2	31	36	38 1/2	38 1/2
K(RF)		mm	83	102	108	121	146	203	248	311	349	394	457	-	-
K1(BW)		inch	3.25	4.00	4.25	4.75	5.75	8.00	9.75	12.25	13.75	15.50	18.00	-	-
L2(RTJ)		mm	178	216	229	254	305	419	508	635	711	800	927	991	991
L2(RTJ)		inch	7	8 1/2	9	10	12	16 1/2	20	25	28	31 1/2	36 1/2	39	39
H		mm	290	316	330	364	414	505	623	803	839	1346	1549	1778	2006
H		inch	11.42	12.44	12.99	14.37	16.30	19.87	24.53	31.61	33.03	52.99	60.98	70.00	78.98
D		mm	180	200	224	250	315	355	355	400	400	450	450	800	800
D		inch	7.09	7.87	8.82	9.84	12.40	13.98	13.98	15.75	15.75	17.72	17.72	31.50	31.50
WT	RF	kg	14	14	25	28	44	90	174	258	404	640	852	978	1280
	RF	pound	31	31	55	62	97	198	384	569	891	1411	1878	2156	2822
	BW	kg	11	12	20	24	35	75	150	230	341	560	751	891	1178
	BW	pound	24	26	44	53	77	159	331	507	752	1235	1656	1964	2597

CLASS 300
SIZE		mm	50	65	80	100	150	200	250	300	350	400
SIZE		inch	2	2 1/2	3	4	6	8	10	12	14	16
L(RF)		mm	267	292	318	356	445	559	622	711	838	864
L1(BW)		inch	10 1/2	11 1/2	12 1/2	14	17 1/2	22	24 1/2	28	33	34
K(RF)		mm	133	146	159	178	222	279	311	356
K1(BW)		inch	5.25	5.75	6.25	7.00	8.75	11.00	12.25	14.00
L2(RTJ)		mm	283	308	333	371	460	575	638	727	854	880
L2(RTJ)		inch	11 1/8	12 1/8	13 1/8	14 5/8	18 1/8	22 5/8	25 1/8	28 5/8	33 5/8	34 5/8
H		mm	350	391	420	492	620	793	1145	1260	1404	1600
H		inch	13.78	15.39	16.54	19.37	24.41	31.22	45.08	49.61	55.28	62.99
D		mm	200	224	250	315	355	400	450	500	710	710
D		inch	7.87	8.82	9.84	12.4	13.98	15.75	17.72	19.69	27.95	27.95
WT	RF	kg	20	40	38	59	149	255	394	534	759	960
	RF	pound	44	88	84	130	328	562	869	1177	1673	2116
	BW	kg	15	33	28	40	123	216	340	472	626	806
	BW	pound	33	73	62	88	271	476	750	1041	1380	1777

CLASS 900
SIZE		mm	50	80	100	150
SIZE		inch	2	3	4	6
L(RF)		mm	368	381	457	610
L1(BW)		inch	14 1/2	15	18	24
K(RF)		mm	184	191	229	305
K1(BW)		inch	7.25	7.50	9.00	12.00
L2(RTJ)		mm	371	384	460	613
L2(RTJ)		inch	14 5/8	15 1/8	18 1/8	24 1/8
H		mm	497.1	513.1	603	958
H		inch	19.57	20.2	23.74	37.75
D		mm	315	315	355	450
D		inch	12.40	12.40	13.98	17.72
WT	RF	kg	78	102	177	312
	RF	pound	172	225	390	688
	BW	kg	59	86	129	234
	BW	pound	130	190	284	516

CLASS 1500

SIZE		mm	50	80	100	150	200
SIZE		inch	2	3	4	6	8
L(RF)		mm	368	419	470	546	705
L1(BW)		inch	14 1/2	16 1/2	18 1/2		27 3/4
K(RF)		mm	184	210	235	273	253
K1(BW)		inch	7.25	8.25	9.25	10.75	13.88
L2(RTJ)		mm	371	422	473	549	711
L2(RTJ)		inch	14 5/8	16 5/8	18 5/8	21 1/2	28
H		mm	497	510	585	713	1189
H		inch	19.57	20.08	23.03	28.07	46.81
D		mm	315	355	400	500	800
D		inch	12.40	13.98	15.75	19.69	31.49
WT	RF	kg	78	146	258	674	1159
	RF	pound	172	322	569	1486	2555
	BW	kg	56	107	199	562	985
	BW	pound	123	236	439	1239	2172
